Micro administration single tube
M8050 Micro administration single tube

M8050 Micro administration single tube

Brief Description:

       The micro administration single tube is used in conjunction with a catheter, catheter cap, injection tube, locking nut, and catheter. Using stainless steel as the fluid delivery pipeline, it is

Detailed Introduction

       The micro administration single tube is used in conjunction with a catheter, catheter cap, injection tube, locking nut, and catheter. Using stainless steel as the fluid delivery pipeline, it is directly buried in the tissue to ensure biocompatibility. During long-term observation in animal experiments, the steel wire of the catheter cap is used to ensure that the tissue does not seep into the base hole; When medication needs to be administered, remove the sleeve cap to administer medication or lower the electrode. If a smaller flow rate is required, administer medication through the injection tube. To reduce the damage to animals caused by implanted sleeves, we have developed corresponding base tube sizes based on different body weights: 400um-650um for mice and 650um-800um for dogs and monkeys.

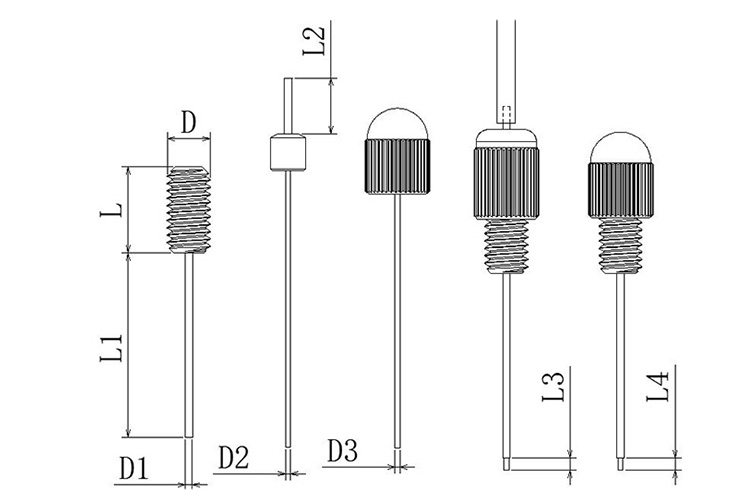

Ordering Information

No.12345
Specifications23G(Rats )24G(Rats And Mice)26G(Mice)27G(Young Mice)22G(Rabbit/Monkey)
ModelM8010M8020M8030M8040M8050
Base Diameter D(mm)3.503.503.503.503.50
Base Tube Diameter D1(mm)External Diameter0.640.550.480.410.72
Internal Diameter0.450.380.340.250.41
Diameter Of Injection Tube D2(mm)External Diameter0.410.360.300.210.41
Internal Diameter0.250.200.140.110.25
Diameter Of Catheter Cap D3(mm)Blocked Core0.400.300.300.200.40
Guide Hat5.0*7.0
Base Tube Length L1(mm)Need to Provide
Extension Length Of Inner Tube L3(mm)Need to Provide(Range:0-1.0mm)
Blocked Core Extension Length L4(mm)Need to Provide(Range:0-1.0mm)
Locking Nut Diameter (mm)5.0*6.5
PE PipePE25(0.85*0.42mm)
