Micro administration double tube
M8110 Micro administration double tube

M8110 Micro administration double tube

Brief Description:

       The micro drug delivery sleeve is used in conjunction with a catheter, catheter cap, injection tube, locking nut, and catheter. Using stainless steel as the fluid delivery pipeline, it is directly bur

Detailed Introduction

The micro drug delivery sleeve is used in conjunction with a catheter, catheter cap, injection tube, locking nut, and catheter. Using stainless steel as the fluid delivery pipeline, it is directly buried in the tissue to ensure biocompatibility. During long-term observation in animal experiments, the steel wire of the catheter cap is used to ensure that the tissue does not seep into the base hole; When medication needs to be administered, remove the sleeve cap to administer medication or lower the electrode. If a smaller flow rate is required, administer medication through the injection tube. To reduce the damage to animals caused by implanted sleeves, we have developed corresponding base tube sizes based on different body weights: 400um-650um for mice and 650um-800um for dogs and monkeys.
To meet the demand of users for simultaneous injection of two types of drugs, a micro administration double tube has been developed, which can be used for bilateral implantation in the brain and is suitable for injecting two different or the same drugs at two different positions.



Ordering Information

No.
1234
Specifications23G(Rats)24G(Rats And Mice)26G(Mice)27G(Young Mice)
ModelM8110M8120M8130M8140
Distance Between Injection Tubes (mm)Base Diameter (4mm)0.8-1.90.7-1.90.6-2.00.5-2.0
Base Diameter (5.5mm)2.0-3.22.0-3.22.2-3.22.2-3.2

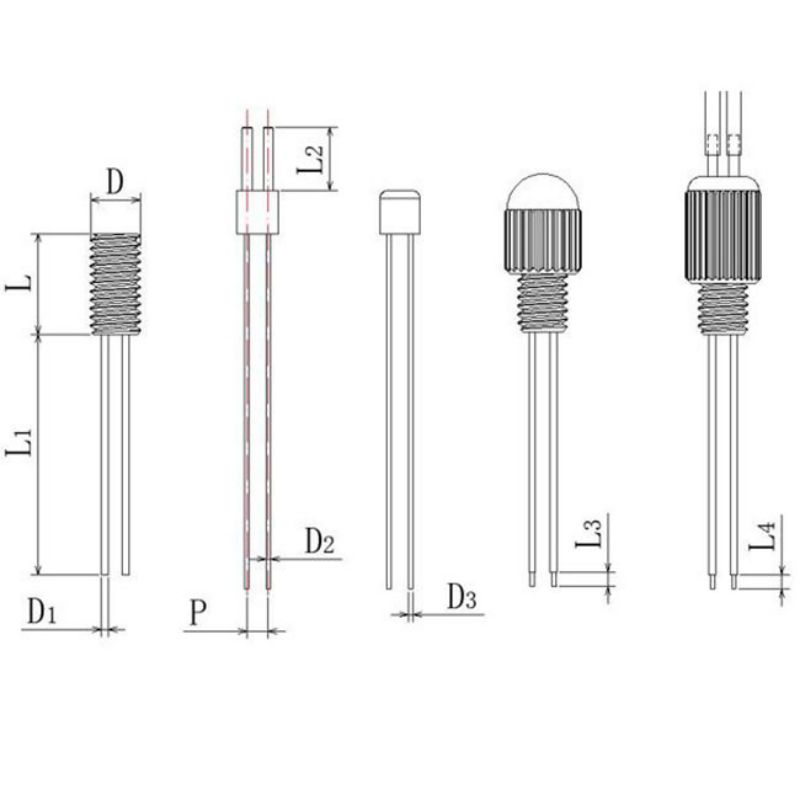

Base Tube Diameter D1(mm)External Diameter0.640.550.480.41
Internal Diameter0.450.380.340.25
Diameter Of Injection Tube D2(mm)External Diameter0.410.360.30.21
Internal Diameter0.250.20.140.11
Diameter Of Catheter Cap D3(mm)Blocked Core0.40.30.30.2
Guide Hat M45.3*7.0
Guide Hat M5.57.0*7.5
Base Tube Length L1(mm)Need to Provide
Extension Length Of Inner Tube L3(mm)Need to Provide(Range:0-1.0mm)
Blocked Core Extension Length L4(mm)Need to Provide(Range:0-1.0mm)
Locking Nut Diameter(mm)M45.3*6.5
M5.57.0*7.5
PE PipePE25(0.85*0.42mm)
